Injection Mold Cooling Systems

 The Purpose of  Injection Mold Cooling Systems

The injection mold cooling system purpose is to ensure uniform cooling of the molded product and then eject the product out within a short period of time. The layout of the cooling channel plays an important role in the injection molding quality as well as the production cycle (cost) of a product.

  • Influence on Quality: During the injection molding process, the cooling channel is used to control mold temperature, of which the fluctuation has a direct influence on product shrinkage, deformation, dimensional stability, mechanical strength, residue cracks and surface quality, etc. Mainly include: surface glossiness, residue stress, crystallinity and thermal flexure.
  • Influence on Production Cycle: An injection molding cycle is mainly composed of the following steps. Reducing the cooling time means an improvement in the injection molding efficiency.

cooling time

Injection Molding Cooling Types and Layout:

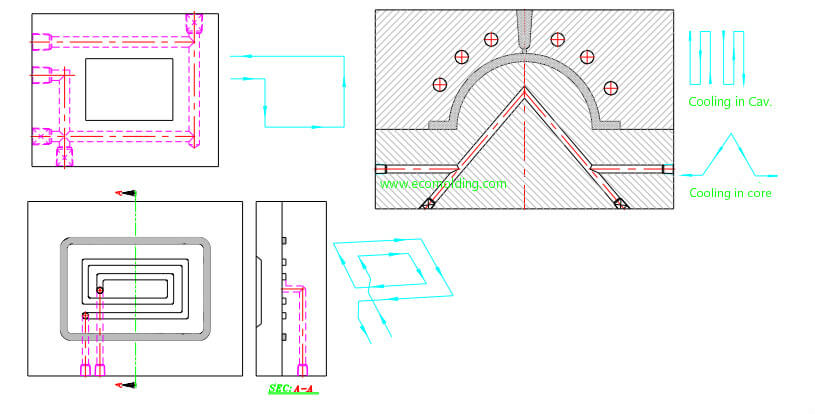

1,Cooling line in core /cavity inserts

Injection mold cooling system for injection mold

2,Connecting cooling line between mold plates and inserts

cooling channel system between mold plates and inserts

3,Different cooling line type

cooling system for plastic injection mold

4,Cooling tower

cooling tower design for plastic injection mold

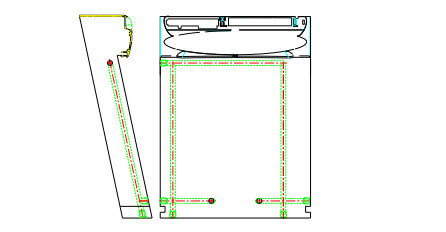

5,Cooling line in lifter

cooling line in lifter of plastic injection mold

6,Cooling line in slider

cooling line in sliders of plastic injection mold
