What is the O-ring used for?

In a mold structure, the cooling channel tends to leak at the joints between mold plates as well as those between the mold plate and the core insert due to the existence of joint gaps. To prevent this from happening, O-rings are often applied to seal the joints.

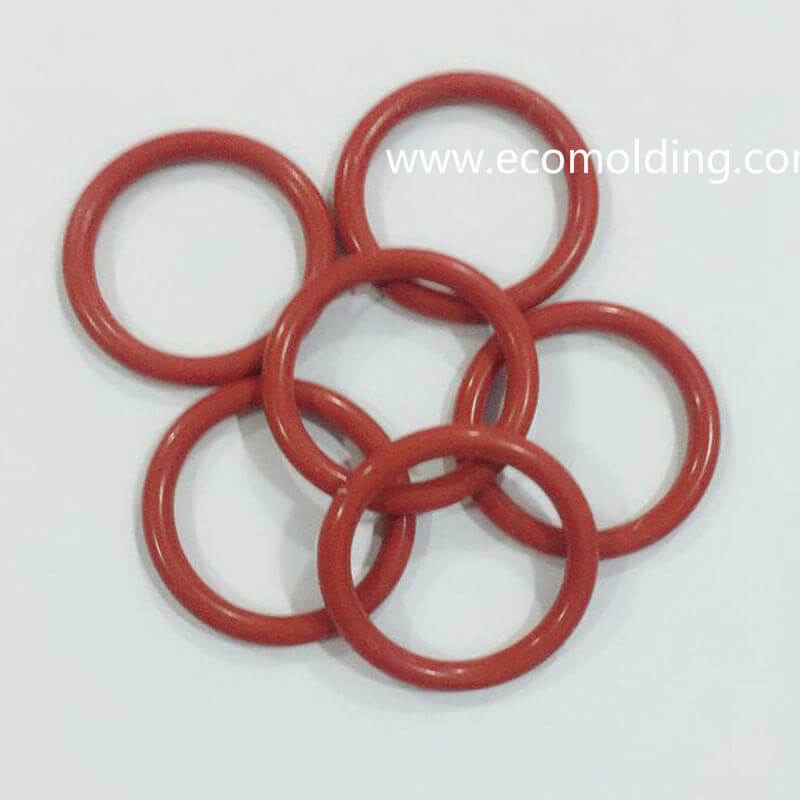

O-ring for plastic injection mold cooling

Mold structure design should take the following principle into consideration in case O-rings are applied:

Ensure sufficient positive pressure between the mold plate and the core/Cav insert.

Please click below for O-ring detail

HASCO O-Ring size and spec.
